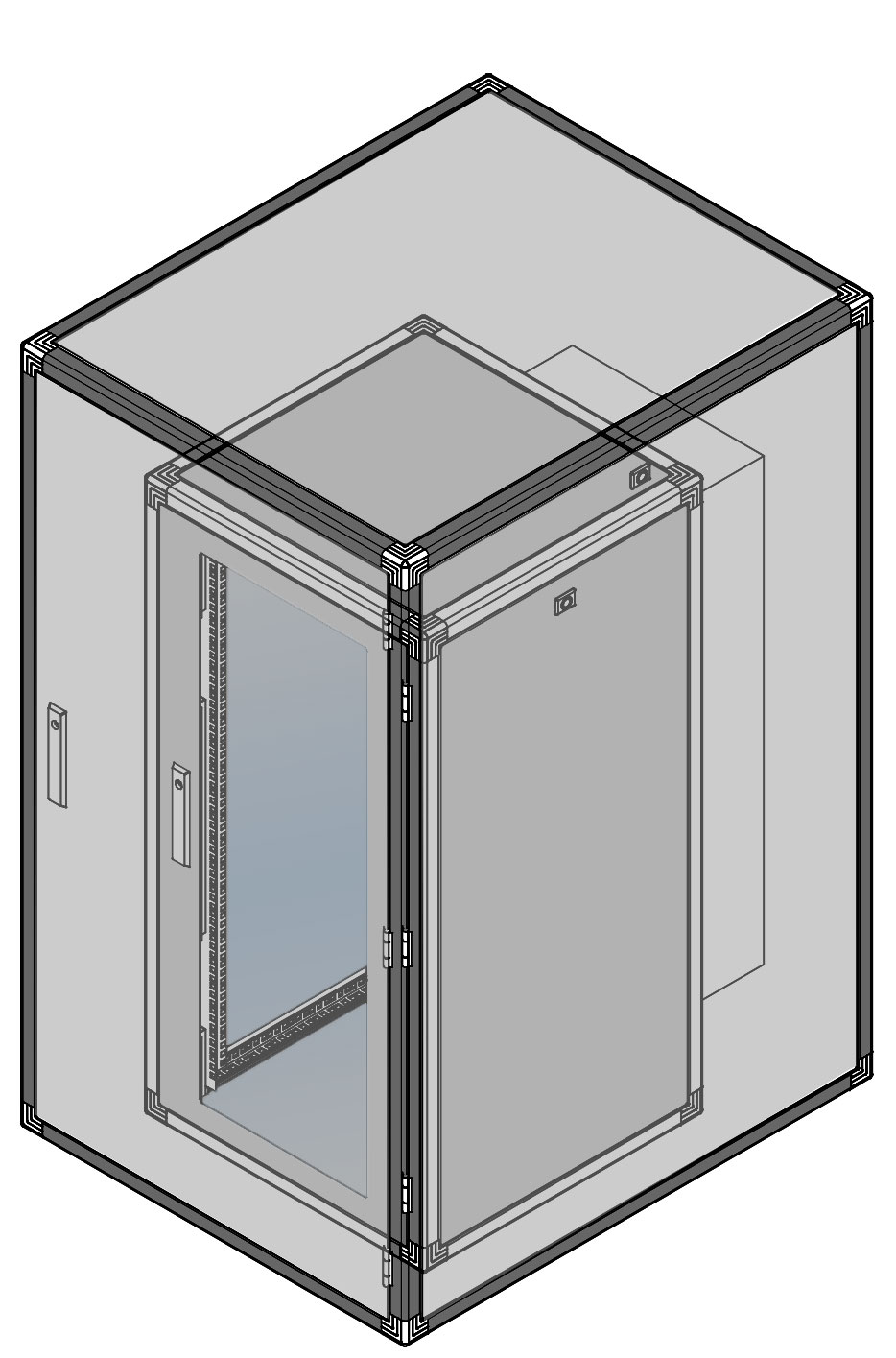

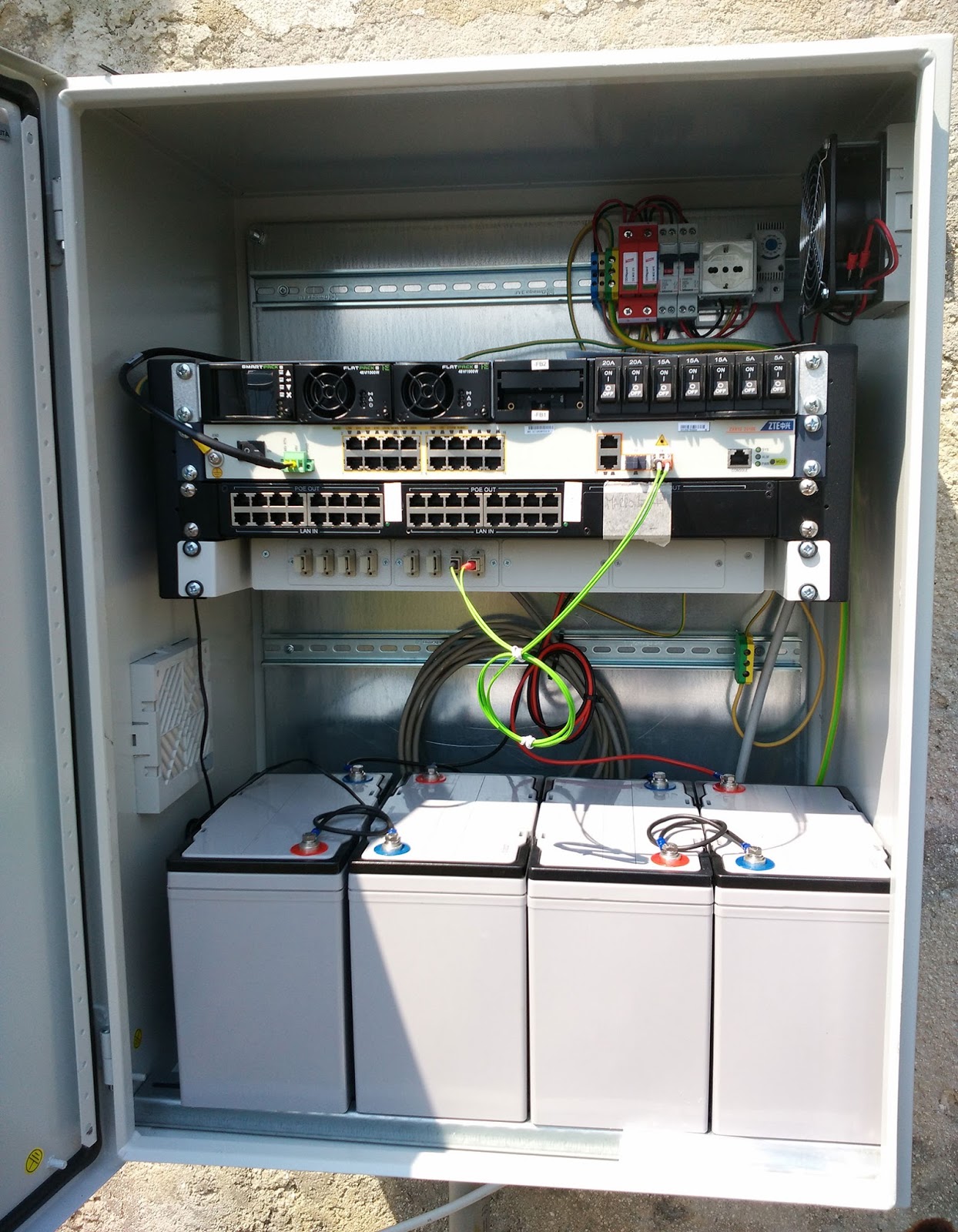

19" rack cabinets for outdoor installation and in environments with dust or corrosive agents, made of polyester with an IP66 degree of protection, steel IP65. |
Industrial cabinets: Custom cabinets with IP55 protection degree. The high IP degree allows use in dusty contexts or with substances potentially harmful to the equipment. It is also possible to transform these cabinets into climate-controlled environments by installing industrial air conditioners, heat exchangers and other solutions for cooling, heating, dehumidification. |
Server rack cabinets: generally used in Data Centers to contain servers, NAS and other active equipment, they have particular characteristics linked to the specific type of use, such as anti-tipping systems and optimized solutions for cooling. Large in size, particularly robust, with 4 or more 19" profiles made of 2 mm thick steel suitable for containing and supporting both servers and other network equipment. They usually have perforated rear and front doors to allow maximum heat exchange with the outside. |
Wall rack panels: They have small dimensions and limited depth. They are suitable for hosting networking devices located outside the data center. |
19" rack containers for desk: Transportable cabinets with handles and feet for instruments, subracks and other electronics, suitable for any area of application. |

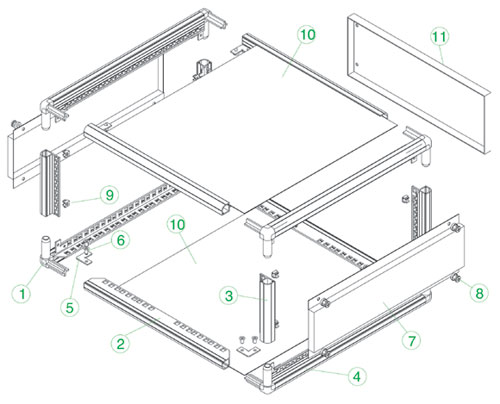

Modul Rack Frames: The Modul Rack frames are ideal for making containers for subracks, 19’’ and electronics in general. For all models it is a wide range of accessories is available such as front plates, side walls with handles, roof and bottom, component holder plate and much more. With the Modul Rack structure you can create 84TE (19") wide frames and smaller width structures: 60 TE (328 mm), 42 TE (237 mm). |
Universal Rack Structure: In extruded aluminium, ideal for creating solid and important cabinets and frames with dimensions of up to 3 meters per side. Standard production includes structures with a height of 6 to 50 units. racks with widths of 551, 596 and 818 mm and depths up to more than 1 metre. The Universal Rack frames can be supplied natural anodized or with a colorless conductive Surtec650 treatment or in other variants of your choice, both as galvanic treatments and as painting. |
Power Rack Structure: They are cage-shaped structures. made with aluzinc treated steel profiles grafted onto three-way joints. Ideal for heavy-duty uses, they guarantee robustness and functionality. even with heavy loads, specifically designed for applications involving battery packs, ferrite cores, electromechanical components. Available in both Aluzinc and painted versions. |
Open Frame 19" wall mounted: Wall rack frames are very simple and economical structures designed to be mounted affixed to a wall or more in general to a vertical wall, they have limited dimensions in terms of capacity and depth. These structures can also be used inside control panels or machinery without 19" rack uprights. |
Laboratory rack frames: Modular structures in extruded aluminum with 2 19" rack profiles, with fixed plinth, with wheels or for desks. Made for specific testing and demonstration uses in the laboratory or at stands. The materials used and the fine finishes make them suitable for contexts in which frequent movements are required, in fairs and events where it is necessary to the aesthetic result is important. |

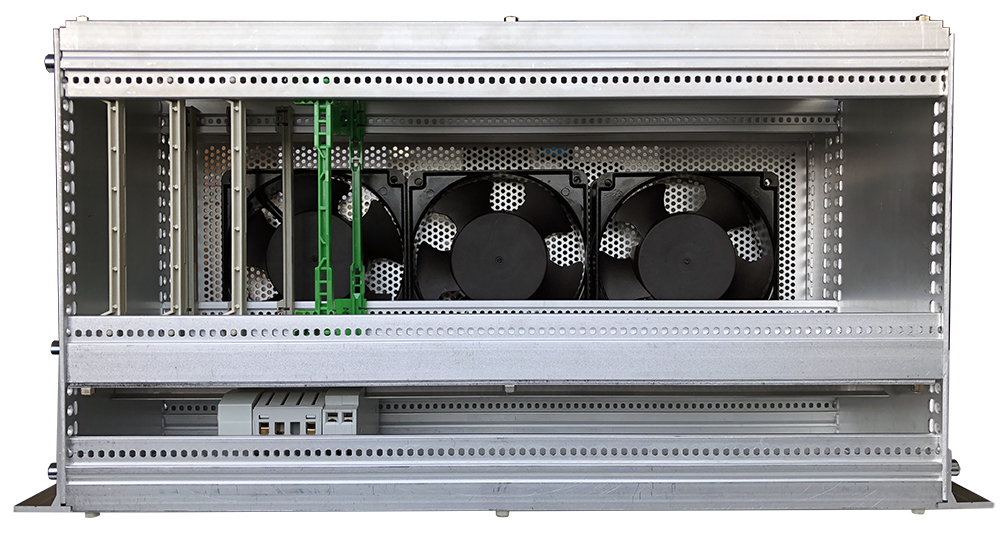

Subracks (or module rack drawers) have standard dimensions, the height is measured in rack units and the smaller models widespread are those 3, 6 and 9 units high, and multiples thereof. The longest external width common is of 19" including flanges for cabinet mounting, or lower when used to make containers for different uses. Internally the width is defined by the unit TE or HP (Horizontal Pitch), where 1 HP equals 0.20 inches (5.08 mm). |
3U-high subracks accept 100 mm high Eurocard cards (CEI-IEC 297-3) while the 6U subracks accept "double europa" format cards. or 6U Eurocards 233.35 mm high. |
Drawer subunits (for subrack modules) are designed for components to be mechanically protected (heavy weights support) or electrically (EMC). Surface protection of aluminum parts is by default and alodine 1000 shielding chrome. On request, natural or colored anodizing treatment is carried out. |

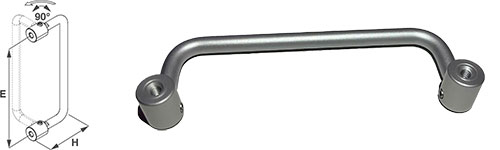

Bridge handles for drawers and sub-racks, in monobloc aluminium, extruded, machined from solid, in steel or plastic. For drawers and containers from 1 to 12 units. rack and beyond. |
Front panels for electronic boards, in aluminum with different possible surface treatments: insulated, conductive, EMC shielded, Surtec 650. |
Card fixing systems to the front panels, grips, front panel accessories, card inserters, extractors and holders |
Boxes and containers for electronics: made in different formats and sizes, with high IP protection degrees for outdoor application or in dusty, aggressive environments, ATEX. Possibility to have accessories such as component holder plates, DIN bars, fans, special locks. Painting in pure polyester and custom manufacturing for minimum batches of just a few pieces. |
Modular electrical cabinets: They are designed to offer extreme safety and great versatility, to be able to satisfy any type of need. Depending on the series chosen, they have a nominal insulation voltage of up to 1000V, a nominal operational voltage of up to 690V, a maximum nominal operational current of the busbar holders of 2500A, a short-circuit current of up to 65KA effective for 1s. |

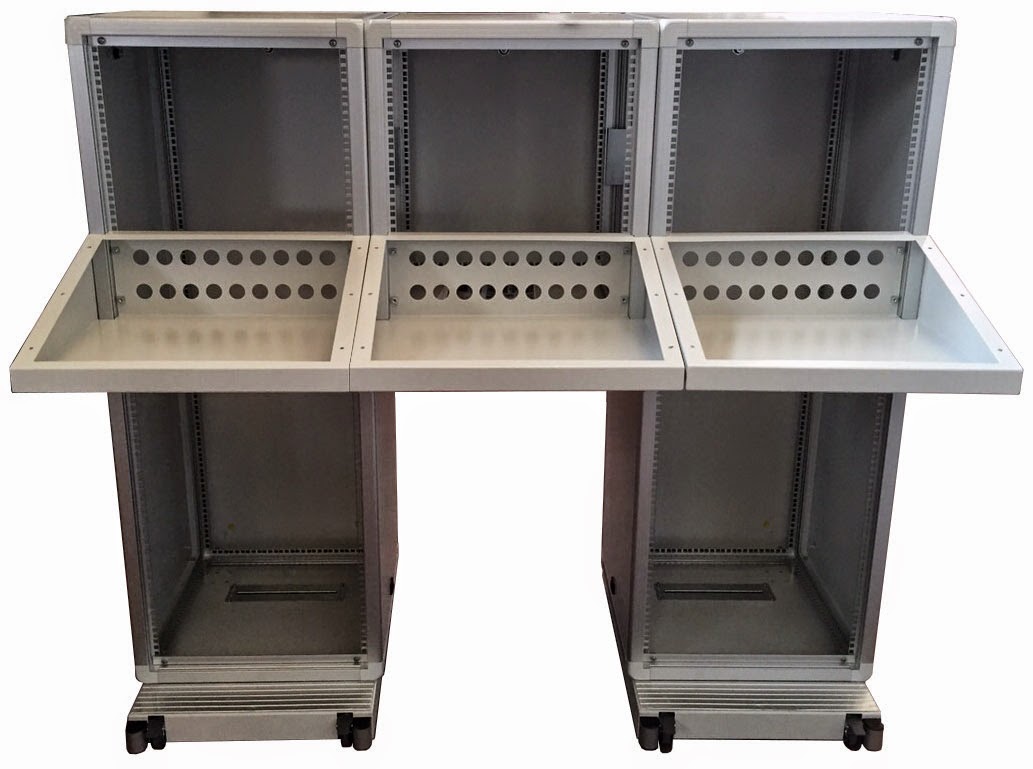

Lectern control panel: The consoles, in monobloc and modular versions, complete the offer of automation containers, ideal for all specific uses in the control and command of industrial machines and systems . The 440 series constitutes the compact range of consoles, in which the lectern is; obtained directly on the base. |
Aluminum and steel electronics enclosures: On plate or guides, made of aluminum with white conductive chrome plating and powder-coated steel covers. |
Folded aluminum electronics enclosures: Robust and versatile, made entirely of folded brushed natural anodized aluminium. Economical and available in many sizes to satisfy all electrical board containment needs. The panels and covers can be modified to position displays, LEDs and connectors. Possibility to customize the boxes with your own silk-screen printing, colours, prints and/or aluminum passivation treatments. Leveling feet, fixing brackets to DIN 35 mm omega bars or other systems available. |
Extruded aluminum electronics containers: Used for the medical, industrial, educational sectors, etc. Europa cards with a height of 100 mm can be used. and auxiliary boards 45 and 42 mm high. Front, side closures, threaded strips must be ordered separately. |
Die-cast aluminum electronics boxes: Universal, stable and easily adaptable for electrical, electronic and pneumatic components. The production takes place with a die casting and shell casting process. The housings can be processed using various mechanical processes and the customization of the surface design to customer-specific requirements knows almost no limits. |

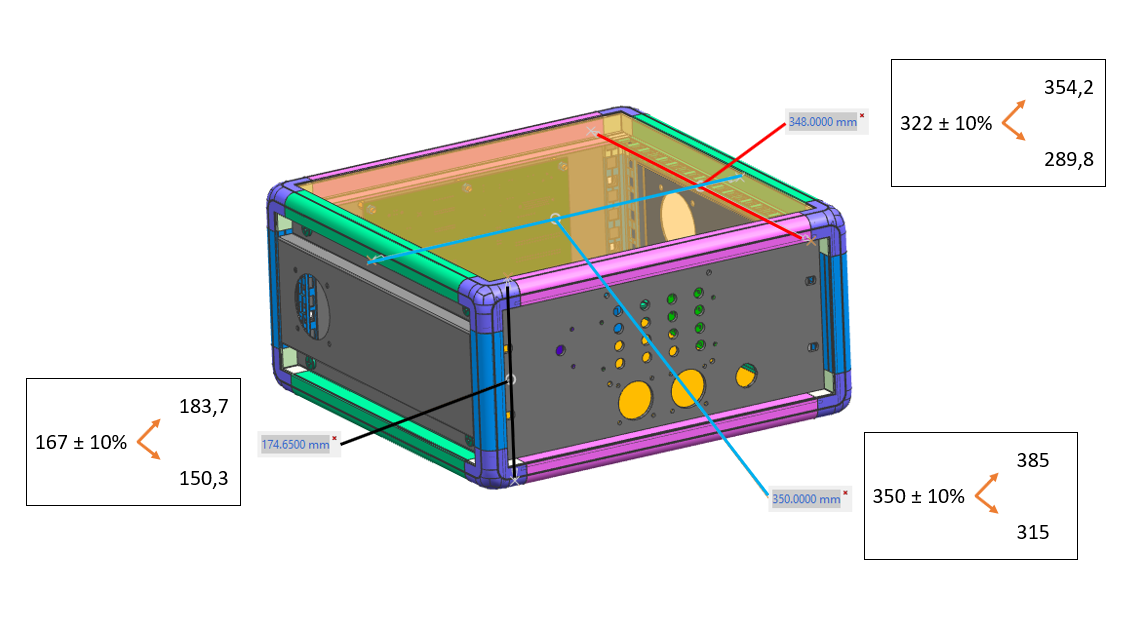

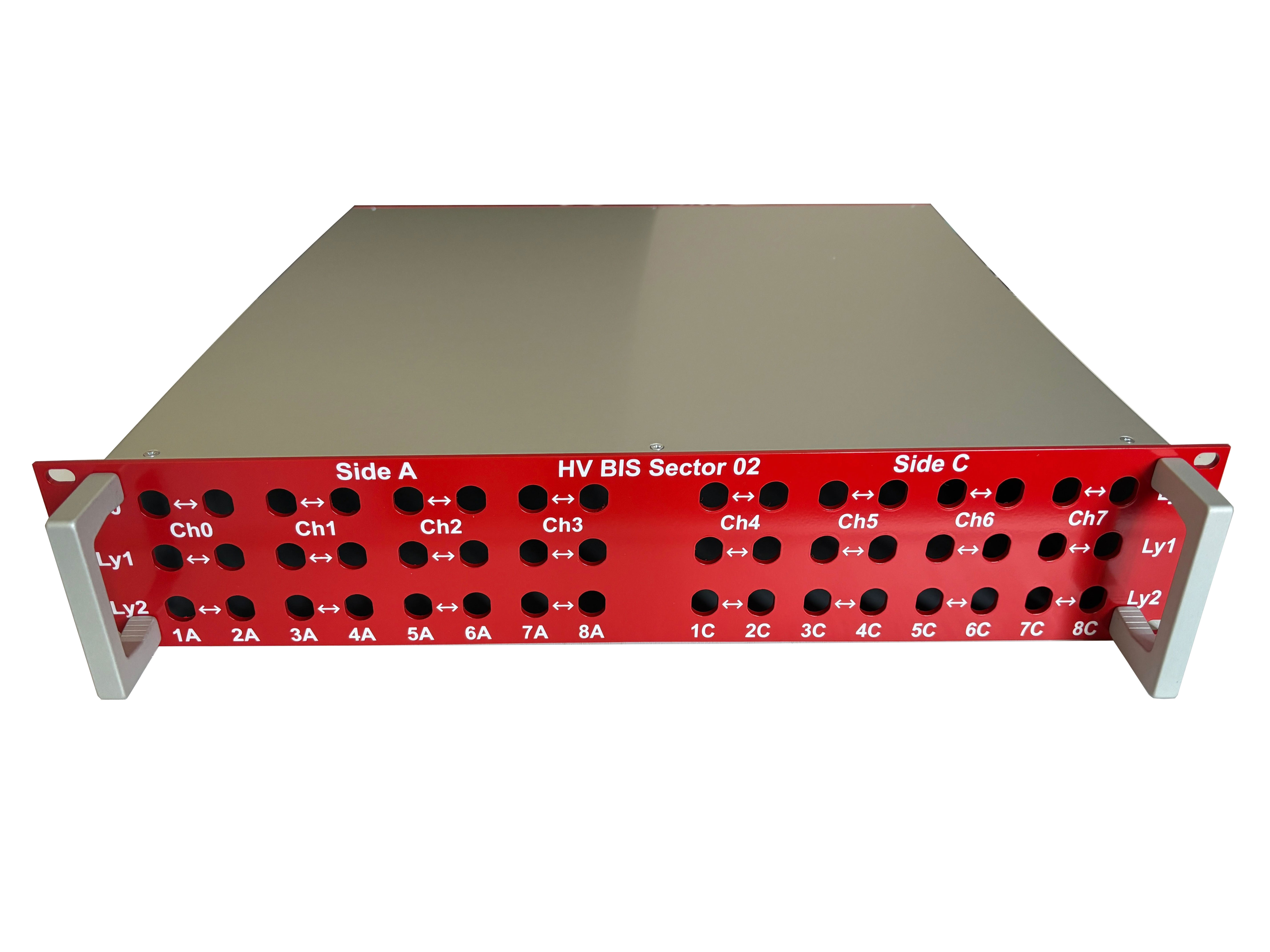

19" sub-rack containers and drawers. Our development department works closely with the customers' technical offices and designs new solutions every day capable of fulfilling the wishes of the most demanding customer. |
Shelves, shelves and rack trays, fixed or extractable support bases on telescopic rails, with 2 or 4 fixing points, with blind or slotted top, for light or heavy loads. brackets, profiles and 19" rack uprights, galvanized plates, bars and rings for cable management. |
Multi-socket power bars: Optimizing space inside a cabinet is essential. fundamental, to be able to have the greatest number of tricks, the most; versatile as possible and occupying the least space are crucial aspects in all applications. For these reasons we produce power bars with different combinations of sockets, 16A or 32A wiring, magneto-thermal and differential switches, safety systems, colored sockets. |
Blind or ventilated panels, blind and ventilated front panels with slots, vents, patterned milling. 19" panels for XLR, Keystone, RCA, fiber optic connectors, electrical sockets and other electronics. |
Feet, wheels, brackets, eyebolts, shock absorbers: Pivoting wheels with or without brake in steel and rubber, eyebolts with threaded pin or bracket, pin feet in steel and rubber, for metal cabinets and containers. |
Ventilation, heating, air conditioning: We have a large catalog of fans, cooling kits, air extraction towers, anti-dust filters, anti-condensation heaters, air conditioners and accessories for the combined management of the climate inside the cabinets. |
