Drawer-shaped containers for EU-sized electrical boards

Robust and versatile electronics enclosures with a refined and customizable design, made of aluminum and steel with rounded corners, countersunk screws and other details that make them beautiful, sturdy and versatile.

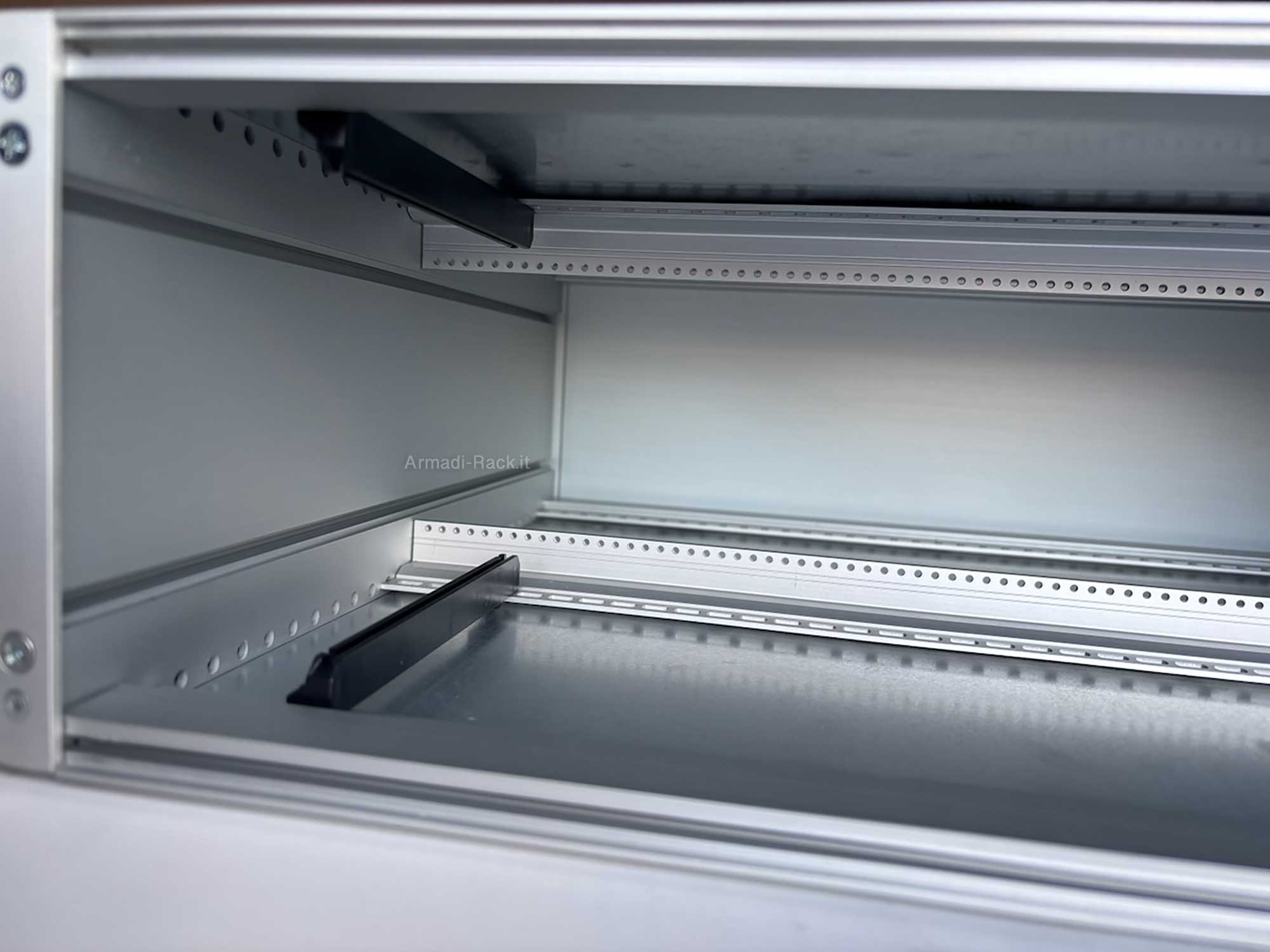

The electronics can be assembled directly on the base of the container, on a special plate supplied separately or on card guides (standard Eurocard 3U and 6U with depths of 160 and 220 mm).

Available accessories: handles, lifting feet, rubber feet.

The range includes standard solutions from 2 to 6 rack units in various depths and widths. The provision of DIN41612 - DIN41617 rear rails, MIL C 21097 adapters, mother board rails, and mother board + insulator, in an intermediate position, allows for the housing of connectors and creates the possibility of inserting boards of different formats (Mixed Rack), obtaining multiple combinations.

The front and back covers can be customized upon request, with the possibility of holes and cutouts for connectors, displays, ventilation, cable passages, air vents, electronics provision, etc.

Click on the codes in the table to access the specific drawer
H height		P external/internal depth (mm)
U	mm (external/internal)	213 / 207	273 / 267	357 / 351	441 / 435	501 / 495
2	88.1 / 68.1	213sa282	273sa282	357sa282	441sa282	500sa282
3	132.5 / 112.5	213sa382	273sa382	357sa382	441sa382	500sa382
4	177 / 157	213sa482	273sa482	357sa482	441sa482	500sa482
5	221.5 / 201.5	213sa582	273sa582	357sa582	441sa582	500sa582
6	265.9 / 245.9	213sa682	273sa682	357sa682	441sa682	500sa682
6 (3+3)	265.9 / (112.5 x 2)	213sb682	273sb682	357sb682	441sb682	500sb682
...CB... 6U drawer split in height (3U+3U) For sizes other than those listed in the table, you can request a quote by contacting the sales office using the email address listed at the bottom of the page.
